Lifting Equipment

  Brochure   Video   Accesories

2 Post Lift
2.40 Classic Lift

PRODUCT DESCRIPTION

Consul nbsp;Convenient base model, base frame free 2-post  4 Ton lift series with established and proven equipment

  • Features
    • Electronically synchronized columns made of special rolled profile
    • Columns turned by 30° (improved angle for door opening)
    • Bronze alloy load nut / cast alloy safety nut
    • Oil dispenser for supporting lubrication
    • Carriage equipped with 6 maintenance-free roller bearings
    • Broken nut raise lock-down feature
    • Covering of post interior
    • Acoustic foot protection
    • Cushioning door stop, adjustable pick-up plate (approx. 25 mm)
    • Lockable operating device with reversing contactor
    • Automatic arm locking device with manual release function
    Specifications:

    Capacity

    kg

    4.000

    Lifting height

    mm

    approx. 2.010*

    Lifting-/ lowering time

    s

    approx. 50

    Swivel-in height

    mm

    approx. 90**

    Arm extension range

    mm

    approx. 760 - 1.460 (3 pcs.)

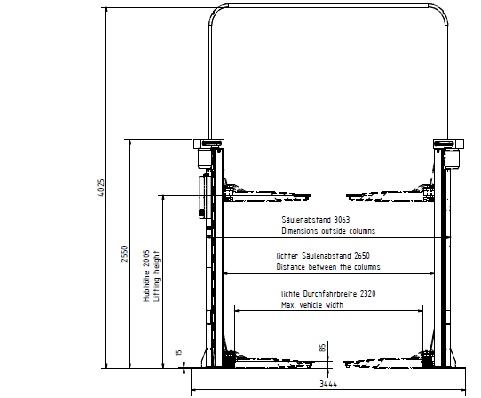

    Set-up width/height

    mm

    approx. 3.444 / 2.550

    Drive-through width

    mm

    approx. 2.320

    Clear distance column

    mm

    approx. 2.650

    Power

    kW

    2 x 2,5

    Power supply (elec.)

    V/Hz

    400 / 50

    Fuse protection (elec.)

    A slow-blow

    20

    * Lifting heights only reachable with optional accessories

    ** Lowest swivel-in heights reachable with optimal floor conditions
